FOS-PRETERM+

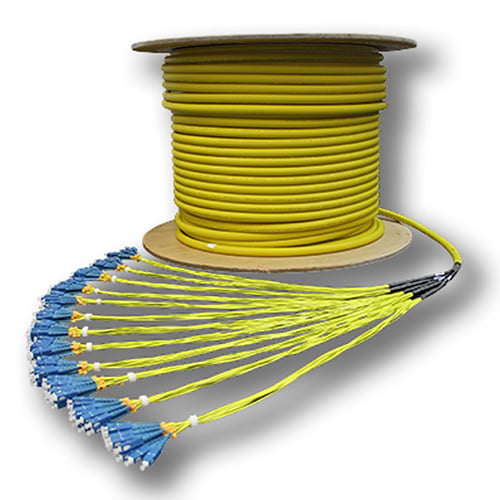

Pre-terminated Fibre Optic Cable Assemblies
Pre-terminated Fibre Optic Cable Assemblies
- Compact multifibre terminations available up to 144 fibres
- Low losses due to quality factory terminations and premium connectors
- Compact size breakout units improve space management in high density applications
- A variety of cable constructions available including loose-tube, tight buffered riser, round mini & ribbon
- Available termination options include a range of simplex, duplex and multifibre connectors
- Optional integrated connector sheath limits potential damage during hauling and installation
- Data centre and enterprise networks
- Campus & site networks
- Remote locations including mine sites & drilling fields
- Dangerous environments where splicing equipment is restricted
- Installations requiring rapid turnaround
- Plug and play networks
Pre-terminated fibre optic cable assemblies present an efficient and effective cable deployment option for any size of fibre optic network. High precision factory terminations, coupled with exceptional quality cable in a range of constructions and styles and fully factory tested terminations ensure peace of mind and rapid deployment.
Fiber Type
G652D","G657A2","OM1","OM3","OM4","OM5
Insertion Loss, max [dB]
MM: 0.30, SM: 0.25
Return Loss, min [dB]
APC: >60 UPC: >50
Color
Various
Conformance
- Insertion Loss: All SC, SCA, LC, LCA, ST, FC assemblies comply with the loss requirements of ISO/IEC 61300-3-4, ISO/IEC 61300- 3-34 & AS/NZS ISO/IEC 14763.3
- Return Loss: All singlemode assemblies comply with the return loss requirements set out in ISO/IEC 61300-3-6
- Cable Attenuation: Cable attenuation falls below levels specified in AS/NZS 3080
- Testing: All testing is completed with reference grade patch leads and precision zirconia sleeve adapters and meet all requirements for testing in AS/NZS ISO/IEC 14763.3
- Fibre Standard: Singlemode assemblies meet ITU 652.D & TIA/EIA 492 CAAA requirements OM3 & OM4 assemblies meet ITU 651.1 & TIA/EIA 492 AAAB requirements OM1 multimode patch leads meet requirements set out in TIA/EIA 492 AAAA
- Low Smoke Zero Halogen: All LSZH patch leads meet the requirements for flame- and fire-retardant properties, low smoke opacity and nil halogens as set out in IEC 60332-1, IEC 60332-3, IEC 1034 1/2, & IEC 60754-1/2
Color code
TIA598
