Product Description

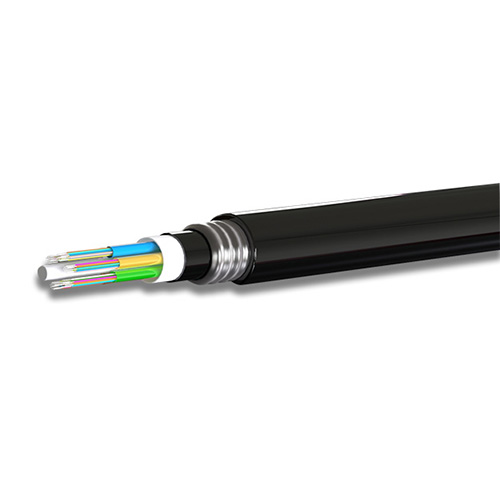

FOS corrugated steel tape armoured loose tube fibre cable is suited to external underground installations in ducts by pulling, jetting or floating techniques or by direct burial in open-cut trenches. CST armoured loose tube is particularly suited to areas where rodents and termites are an issue and metallic construction is permitted.
Loose tube cable offers a cost-effective and rugged solution for medium and long distance external fibre runs.
FOS nylon jacket loose tube cable is available in OM1, OM3, OM4 and Singlemode.
Technical Specification Sheet
Features

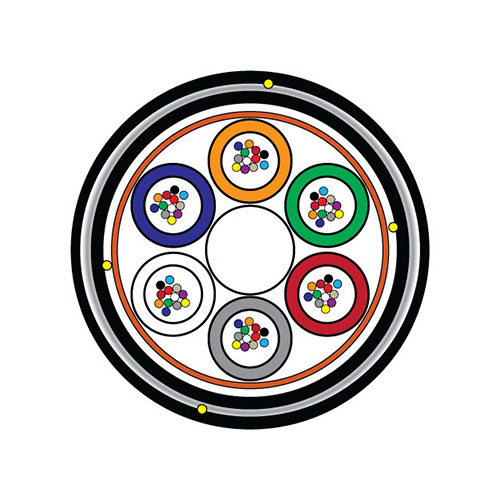

• Double jacketed, armoured loose tube
• Insect/termite resistant steel tape and UV stabilised polyethelene jackets suits permanent installation in a wide range of environments
• Water swellable yarns provide protection against water ingress (dry core construction)
• Metallic armouring offers superior protection to a range of hazards
• Fibreglass reinforced polymer central strength member provides excellent anchor point
• Flexible buffer tubes provide easy handling within termination enclosures
• Single layer SZ stranding limits stress on fibre tubes under tensile loads
• Fibre friendly thixotropic gel in tubes ensures fibre protection
• TIA 598 standard colour code
• 6-144 fibres
Applications
• Underground ducts
• Direct buried fibre links
• Inter-building links
• Railway fibre networks
• Infrastructure and industrial fibre links
• Rodent/termite prone areas
Specifications
| Fibre Type |
OM1 |
OM3 |
OM4 |
SM |
| Attenuation at 850nm (dB/km) |
< 3.1 |
< 3.0 |
< 3.0 |
n/a |
| Attenuation at 1300/1310 (dB/km) |
< 1.0 |
< 1.0 |
< 1.0 |
< 0.35 |
| Attenuation at 1550nm (dB/km) |
n/a |
n/a |
n/a |
< 0.21 |
| Attenuation at 1625nm (dB/km) |
n/a |
n/a |
n/a |
< 0.24 |
|
Bandwidth at 850nm
[1300nm] (MHz.km)
|
>200
[>500]
|
>1500
[>500]
|
>3500
[>500]
|
n/a |
See datasheet for further technical specifications and standards applicable to our corrugated steel tape armoured loose tube cable.
