F-LT____-SAC-PE-BK

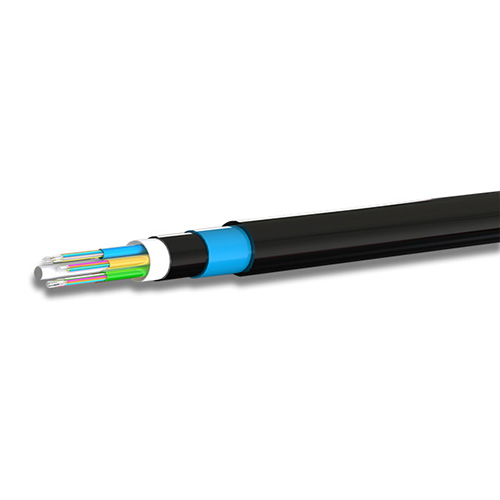

Sacrificial Sheath Loose Tube
Sacrificial Sheath Loose Tube Cables 6-144F
- Bonded triple jacketed construction - excellent resistance to termites and external damage
- Insect resistant intermediate nylon layer with physical protection of the added outer layer
- UV stabilised polyethylene inner and outer jacket for long life in a wide range of installations
- Water swellable yarns provide protection against water ingress (dry core construction)
- Non-metallic construction
- Fibreglass reinforced polymer central strength member and glass yarn peripheral strength member provide excellent strength
- Flexible buffer tubes provide easy handling within termination enclosures
- Single layer SZ stranding limits stress on fibre tubes
TIA 598 Color Code Chart
TIA 598 Color Code Chart
Sort by
Article name
Add to list
More
- Product: Sacrificial Sheath Loose Tube 12F SM G652D (ID: F-LT12S-SAC-PE-BK) | Color: Black | No. of Fibers: 12 | Layout: 1x12 (5 fillers) | Bend Radius [mm]: 230 | Tensile Force, Installation [N]: 2000 | Tensile Force, Operation [N]: 2000 | Crush [N/100 mm]: 2000 | Impact [J]: 300mm height, 3kg weight, 3 impacts | Torsion: "10 Cycles (± 360°) 10 kg weight, 2m length" | Diameter: 11.5 | Weight [kg/km]: 95
- Product: Sacrificial Sheath Loose Tube 24F SM G652D (ID: F-LT24S-SAC-PE-BK) | Color: Black | No. of Fibers: 12 | Layout: 2x12 (4 fillers) | Bend Radius [mm]: 230 | Tensile Force, Installation [N]: 2000 | Tensile Force, Operation [N]: 2000 | Crush [N/100 mm]: 2000 | Impact [J]: 300mm height, 3kg weight, 3 impacts | Torsion: "10 Cycles (± 360°) 10 kg weight, 2m length" | Diameter: 11.5 | Weight [kg/km]: 95
- Product: Sacrificial Sheath Loose Tube 48F SM G652D (ID: F-LT48S-SAC-PE-BK) | Color: Black | No. of Fibers: 48 | Layout: 4x12 (2 fillers) | Bend Radius [mm]: 230 | Tensile Force, Installation [N]: 2000 | Tensile Force, Operation [N]: 2000 | Crush [N/100 mm]: 2000 | Impact [J]: 300mm height, 3kg weight, 3 impacts | Torsion: "10 Cycles (± 360°) 10 kg weight, 2m length" | Diameter: 11.5 | Weight [kg/km]: 95
- Product: Sacrificial Sheath Loose Tube 144F SM G652D (ID: F-LT144S-SAC-PE-BK) | Color: Black | No. of Fibers: 144 | Layout: 12x12 | Bend Radius [mm]: 300 | Tensile Force, Installation [N]: 2000 | Tensile Force, Operation [N]: 2000 | Crush [N/100 mm]: 2000 | Impact [J]: 300mm height, 3kg weight, 3 impacts | Torsion: "10 Cycles (± 360°) 10 kg weight, 2m length" | Diameter: 15 | Weight [kg/km]: 175
