Product Description

Fibreco Senior(Single/Multimode 2/4/6/8 Channel)

expanded beam fibre optic connectors have been designed for use in the most demanding harsh environment applications including military tactical communications, outside broadcast, petrochemical plant, mining, and offshore systems.

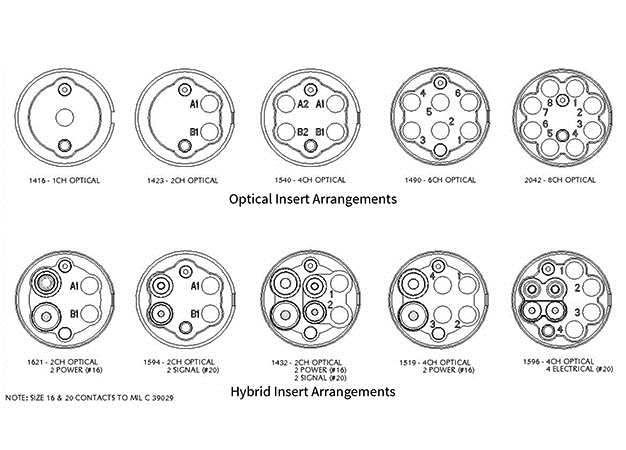

The Fibreco Senior connector range includes 1, 2, 4, 6 and 8 optical channel versions and five fibre optic / electrical hybrid variants.
The connectors are terminated using an epoxy-polish ferrule termination process with standard fibre optic termination tools and equipment. The terminated ferrules are simply inserted into the expanded beam housing and fixed in place via a spring and cover-plate. Ferrule alignment to the lenses is achieved automatically by the unique optical arrangement developed and patented by Fibreco. In hybrid connectors, electrical connections are made via standard gold plated MIL-C-39029 crimp contacts.. Fibreco Senior expanded beam connectors offer a cost effective high performing and flexible solution that is proven in the toughest environments and is the solution for mission critical communications.

Technical Specification Sheet
