F-A___-LSZH-__
Simplex & Duplex Assembly Cable
Simplex & Duplex LSZH Assembly Cable
- Fire resistant low smoke, zero halogen outer jacket design is perfectly suited for data centres & confined spaces
- Corning® OM1, OM3, OM4, OM5, G652.D, G657A1, G657A2 singlemode fibre
- Available in a range of jacket colours
- 900um buffered fibre can be direct-terminated with standard connectors
- Tightly packed aramid yarn in cable offers for high tensile strength and excellent mechanical characteristics
Sort by
Article name
Add to list
More
- Product: Simplex LSZH Assembly Cable 1F Multimode OM1 (ID: F-A1M1-LSZH-2OR) | Color: Orange
*Can be ordered in different colours as well | No. of Fibers: 1 | Layout: 1x1 | Bend Radius [mm]: 29 | Tensile Force, Installation [N]: 100 | Tensile Force, Operation [N]: 60 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 4.5
- Product: Simplex LSZH Assembly Cable 1F Multimode OM1 (ID: F-A1M1-LSZH-3OR) | Color: Orange
*Can be ordered in different colours as well | No. of Fibers: 1 | Layout: 1x1 | Bend Radius [mm]: 29 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 3 | Weight [kg/km]: 8.6
- Product: Simplex LSZH Assembly Cable 1F Multimode OM3 (ID: F-A1M3-LSZH-2AQ) | Color: Aqua
*Can be ordered in different colours as well | No. of Fibers: 1 | Layout: 1x1 | Bend Radius [mm]: 29 | Tensile Force, Installation [N]: 100 | Tensile Force, Operation [N]: 60 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 3 | Weight [kg/km]: 8.6
- Product: Simplex LSZH Assembly Cable 1F Multimode OM3 (ID: F-A1M3-LSZH-3AQ) | Color: Aqua
*Can be ordered in different colours as well | No. of Fibers: 1 | Layout: 1x1 | Bend Radius [mm]: 29 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 4.5
- Product: Simplex LSZH Assembly Cable 1F Singlemode G657A2 (ID: F-A1S2-LSZH-2YL) | Color: Yellow
*Can be ordered in different colours as well | No. of Fibers: 1 | Layout: 1x1 | Bend Radius [mm]: 29 | Tensile Force, Installation [N]: 100 | Tensile Force, Operation [N]: 60 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 4.5
- Product: Simplex LSZH Assembly Cable 1F Singlemode G657A2 (ID: F-A1S2-LSZH-3YL) | Color: Yellow
*Can be ordered in different colours as well | No. of Fibers: 1 | Layout: 1x1 | Bend Radius [mm]: 29 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 3 | Weight [kg/km]: 8.6
- Product: Duplex LSZH Assembly Cable 2F Multimode OM1 (ID: F-A2M1-LSZH-2OR) | Color: Orange
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 7.5
- Product: Duplex LSZH Assembly Cable 2F Multimode OM1 (ID: F-A2M1-LSZH-3OR) | Color: Orange
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 300 | Tensile Force, Operation [N]: 160 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 3 | Weight [kg/km]: 14.2

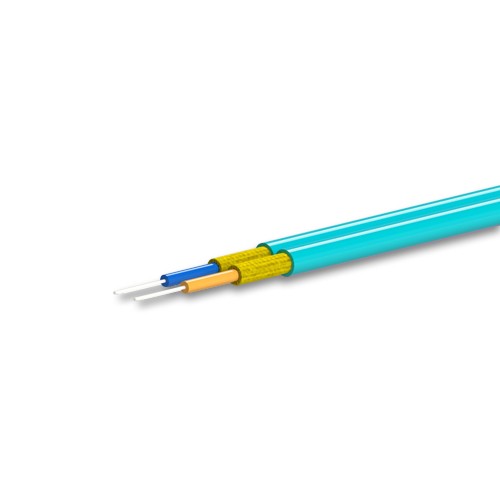

- Product: Duplex LSZH Assembly Cable 2F Multimode OM3 (ID: F-A2M3-LSZH-2AQ) | Color: Aqua
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 7.5
- Product: Duplex LSZH Assembly Cable 2F Multimode OM3 (ID: F-A2M3-LSZH-3AQ) | Color: Aqua
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 300 | Tensile Force, Operation [N]: 160 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 3 | Weight [kg/km]: 14.2
- Product: Duplex LSZH Assembly Cable 2F Multimode OM4 (ID: F-A2M4-LSZH-2AQ) | Color: Aqua
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 7.5

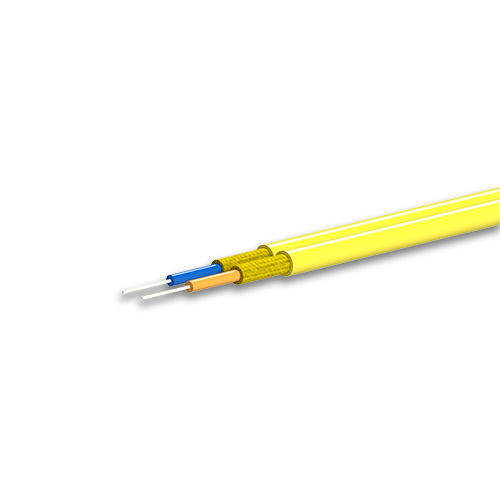

- Product: Duplex LSZH Assembly Cable 2F Singlemode G657A2 (ID: F-A2S2-LSZH-2YL) | Color: Yellow
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 160 | Tensile Force, Operation [N]: 80 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 2 | Weight [kg/km]: 7.5
- Product: Duplex LSZH Assembly Cable 2F Singlemode G657A2 (ID: F-A2S2-LSZH-3YL) | Color: Yellow
*Can be ordered in different colours as well | No. of Fibers: 2 | Layout: 2x1 | Bend Radius [mm]: 40 | Tensile Force, Installation [N]: 300 | Tensile Force, Operation [N]: 160 | Crush [N/100 mm]: 1000 | Torsion: "5 Cycles (± 180°) 50 N, 2m length" | Diameter: 3 | Weight [kg/km]: 14.2
